PLC 600mm Universal Material Testing Machine UTM 10N-2KN 35kg Tensile Testing Equipment

Name: PLC 600mm Universal Material Testing Machine UTM 10N2KN 35kg Tensile Testing Equipment
Brand: HBYIQI
Price: 1 USD

Best PLC 600mm Universal Material Testing Machine UTM 10N-2KN 35kg Tensile Testing Equipment wholesale

Brand Name : HBYIQI

Model Number : HB-B02-M

Certification : ISO9001

Place of Origin : China

MOQ : 1SET

Price : Negotiation

Payment Terms : T/T

Delivery Time : 15Days

Packaging Details : International Standard Package

Maximum Test Force : 10,20,50,100,200,500N,1000N,2000N

Test Force Measurement Range : 2%-100%

Accuracy Level : ≤±0.5

Control Method : Touch screen control

Effective Tensile Stroke : 600mm

Weight : About 35kg

Machine Size : W450×D400×H1200mm

Power : 0.2KW

Test force resolution : 1/200000 of maximum test force

Contact Now

Universal Material Testing Machine Single-Column W450 D400 H1200mm UTM 10N-2KN 35kg PLC 600mm

Brand: HBYIQI

Appliance:

The equipment is suitable for tensile, tension, compression, bending, shearing, tearing, fracture, stripping, compression, puncture and other mechanical properties of materials or processes.

Techinical Parameter:

Model	HB-B02-M
Control mode	PLC touch screen control
Maximum test force (N)	10,20,50,100,200,500N,1000N,2000N
Accuracy class	≤ ± 0.5 class
Measuring range of test force	2%-100%
Relative error of test force indication	＜±1%
Test force resolution	1/200000 of maximum test force
Deformation measurement range	2%-100%
Relative error of deformation indication	＜±1%
Relative error of displacement indication	＜±1%
Displacement resolution (mm)	0.001
Speed range	0.01mm/min ~ 500mm/min
Effective stretching stroke (mm)	About 600mm after the fixture is installed (larger stroke can be customized)
Effective stroke of compression (mm)	About 600mm after the fixture is installed (larger stroke can be customized)
Fixture available	Tension, compression, bending, shearing, peeling, tearing, etc.
Overall dimension of main machine (mm)	W450×D400×H1200mm
Motor power (kW)	0.2
Total weight (kg)	About 35
Power supply	AC220V,50HZ,1A
Standard configuration
Instrument host	1 set
Test fixture	1 pair
Calibration weight	1
Power cord	1 (220V 10 A)
Instructions for use	1 book
Certificate of conformity	1 copy

Performance Features

Touch screen display, real-time force value, peak value, speed, test times, curve intuitive display.
The design is humanized and the operation is simple and easy.
Instrument storage: 40 test results, any one or more groups can be deleted.
Printout: with micro thermal printer output.
Force unit: N, kN, KGF, GF, LBF optional.
Displacement unit: mm, cm, in optional
Strength unit: Pa, kPa, Mpa, KGF/cm2, LBF/in2 optional.
Protection measures: overforce value protection, limit protection and other protection methods.
High sensitivity, instantaneous decision attenuation, automatic shutdown

Product Software Advantages

Full Chinese or English visual display, suitable for domestic and foreign use!
Test, ascend, descend and return speed can be input and set at will for precise control.
Automatic and quick return after the test is completed, avoiding long waiting and accelerating the test efficiency.
Test result: the test is automatically recorded and saved without manual storage.
Multiple test items and units are available to meet multiple test standards.
High precision: adopt high precision S-type sensor, the maximum precision can reach 0.25%.
Built-in special calibration mode is convenient for the third party measurement and calibration organization to calibrate and certify the instrument.

Equipment Details Display

Main interface of control system (comprehensive):

PLC 600mm Universal Material Testing Machine UTM 10N-2KN 35kg Tensile Testing Equipment

Test unit (multiple options):

Test result (calculated automatically):

Internal calibration interface (simple and fast):

PLC 600mm Universal Material Testing Machine UTM 10N-2KN 35kg Tensile Testing Equipment

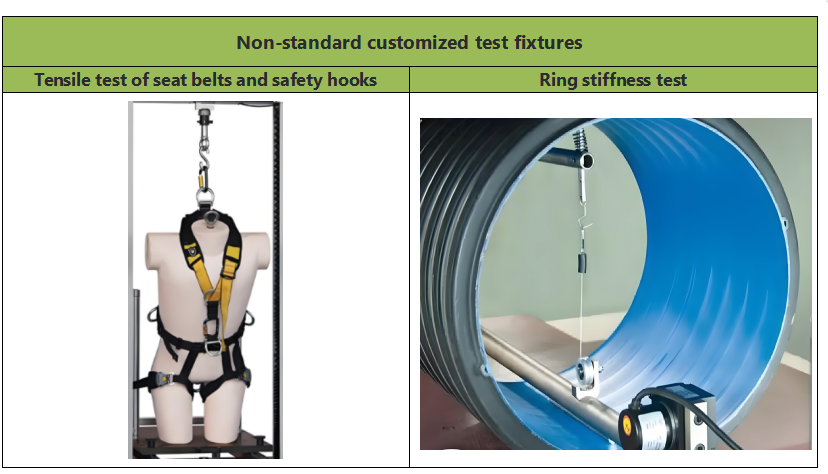

Suitable for Various Material Mechanical Tests (Hundreds of Test Fixtures Available for Selection)

PLC 600mm Universal Material Testing Machine UTM 10N-2KN 35kg Tensile Testing Equipment
